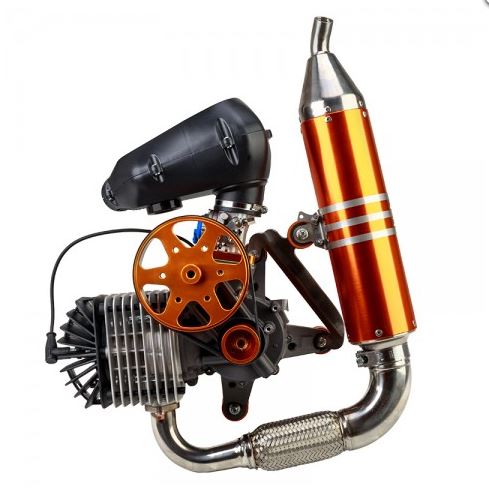

The N80 engine was born from a completely new project, without compromises, using only the best materials, and the excellence of our territory, in collaboration with one of the best Italian aeronautical companies, Air-Italy srl. A small unit, with great performance. Thrust displayed 53 kg with propeller of 130 cm at 9900 rpm.

Weight, exhaust, air box and four rubber mounts included kg. 10,5

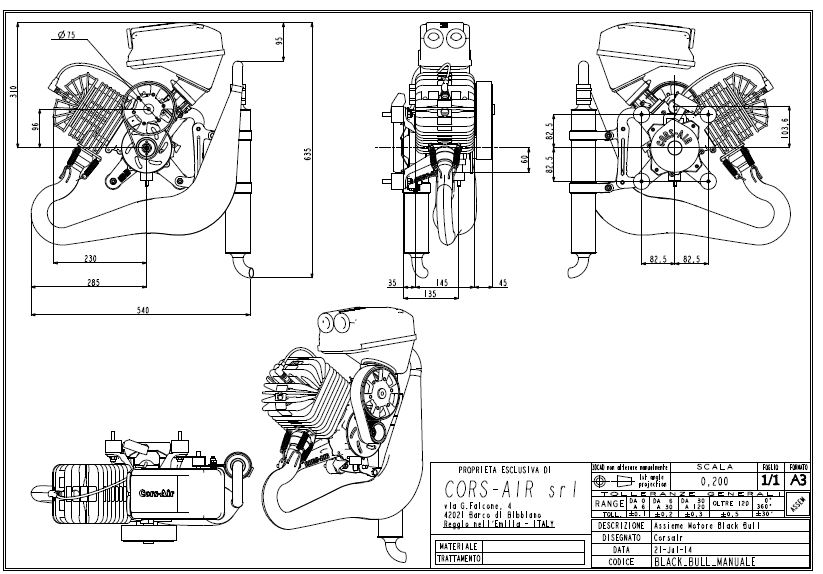

Technical Specifications N80



2-stroke cycle

Displacement 78 cc.

Bore 47.5

Stroke 44

Forced Air Cooling, with double fan and carbon cooling shroud

Manual Start / Flash Starter

Reduction Poly belt v / ratio 1: 3.75

Counterclockwise rotation

Crankcase casted in alloy G-Al-Si 9 uni 3051 / treated and anodized

Malossi NHR Replica cylinder kit with customized specifications for Cors-Air Motors

Malossi NHR Double Ring Piston

Diaphragm Carburetor, Walbro WB 46

NGK BR9ES spark plug

Fuel Blend 95/100 Octane Petrol with 100% Synthetic 2.2% Oil

Motor weight 10.5 kg

Power 17 CV at 9900 RPM

Static thrust 53 Kg with propeller of 130 cm at 9900 RPM

The engine include Cooling Shroud and (4) Rubber Mounts

MANUALE N80
