Description

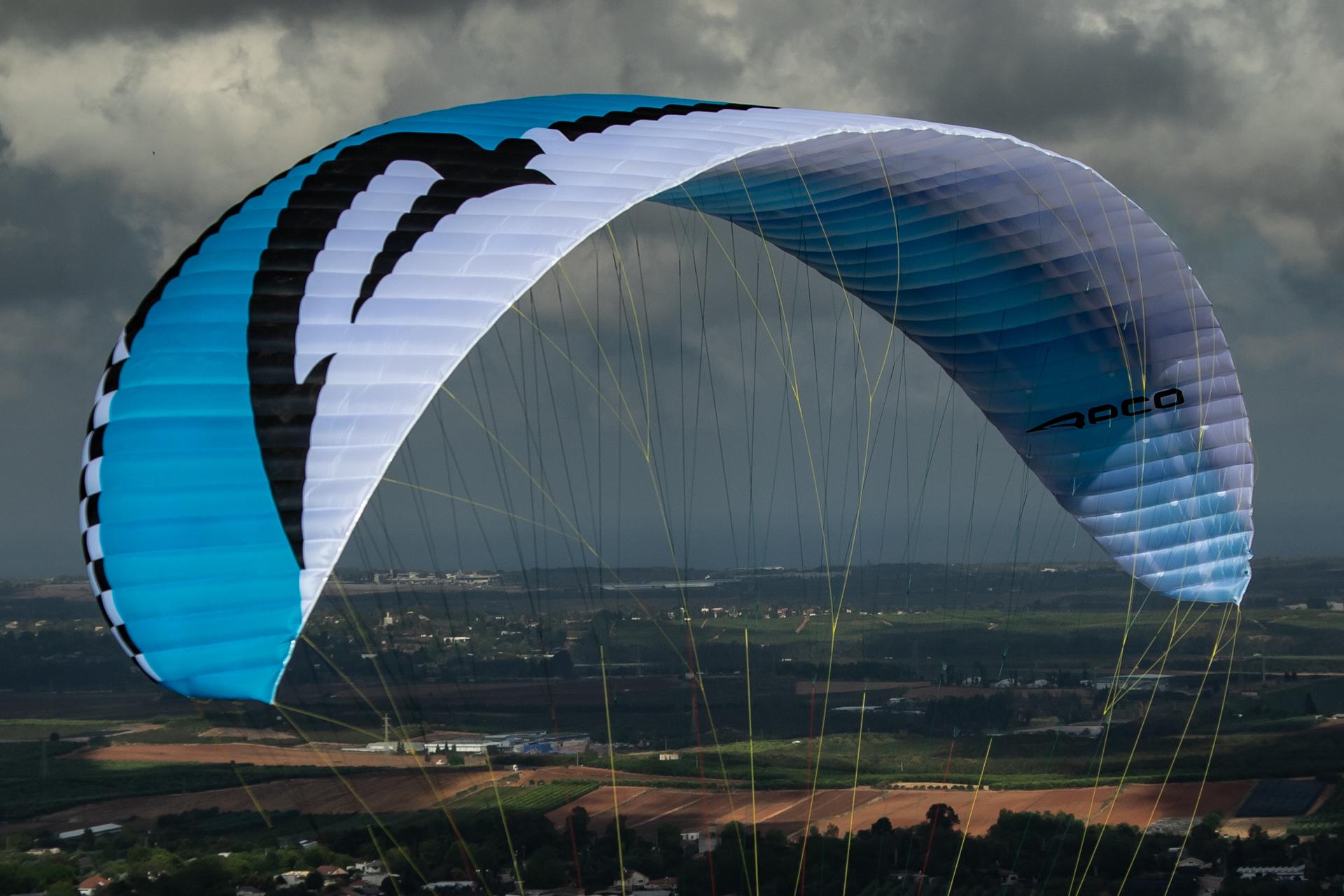

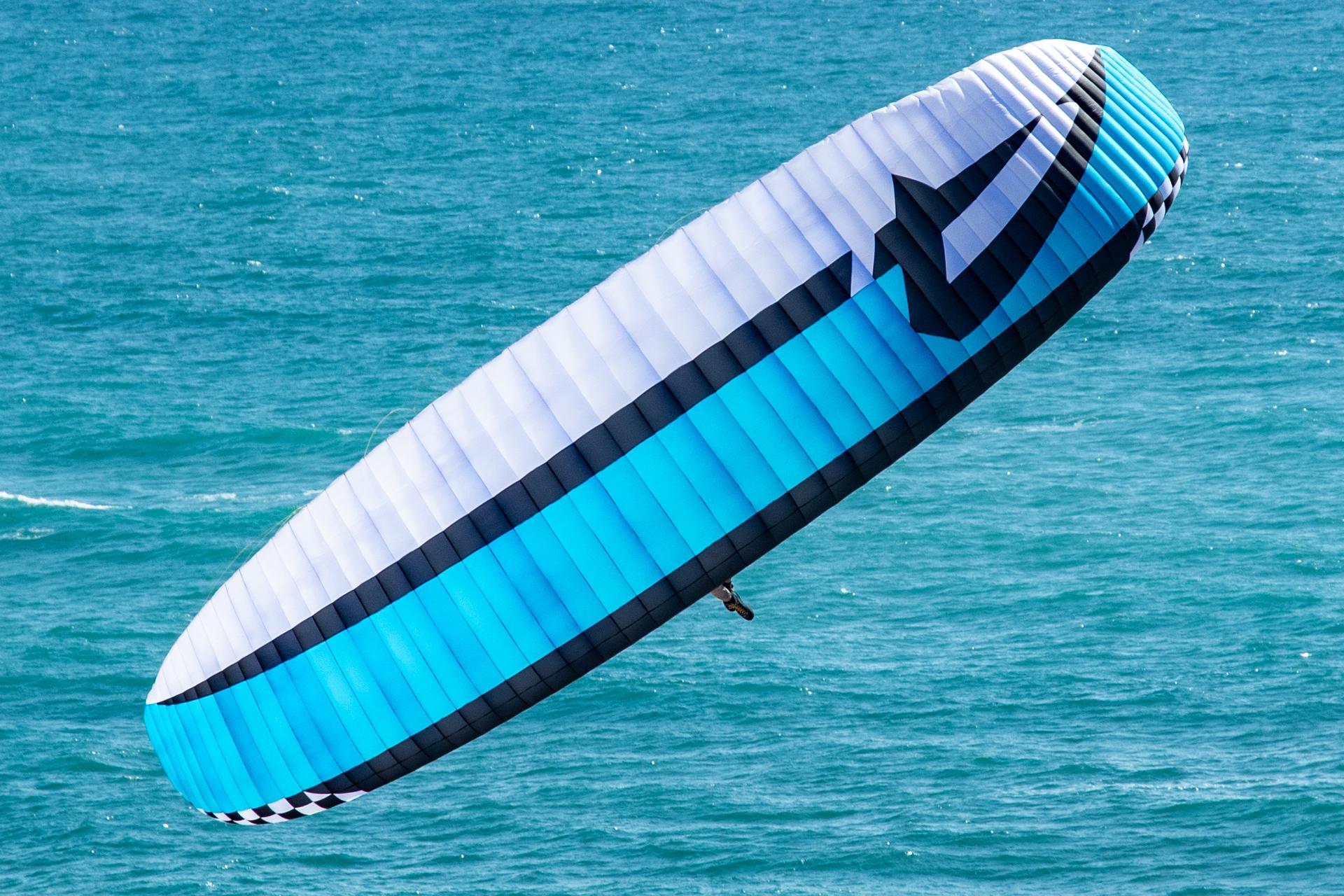

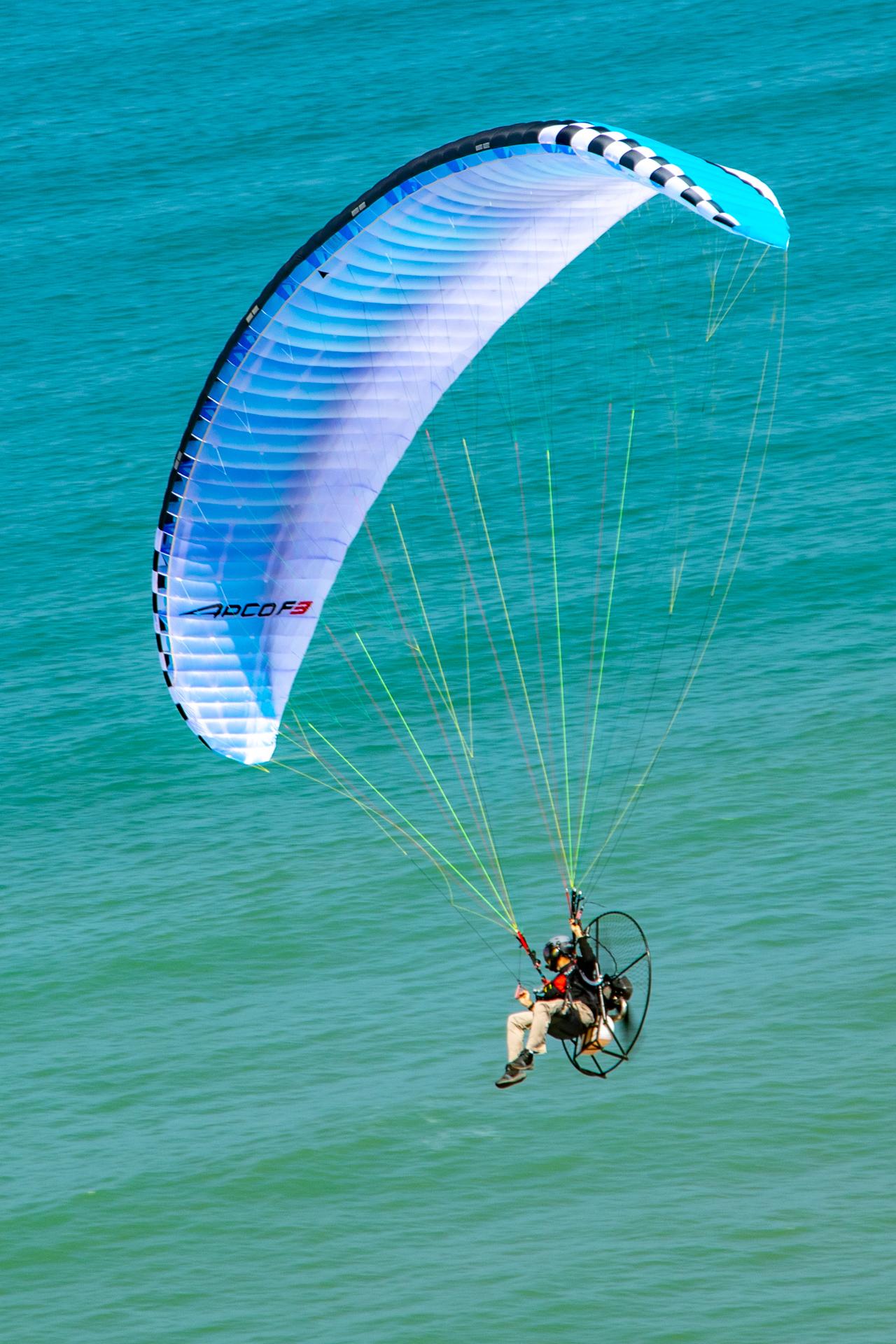

F3 is APCO’s Sport Class cross country paramotor wing. Intended for weekend warriors with a focus on pure, enjoyable, reliable and confidence inspiring performance. Based on the ground breaking F1, the F3 delivers a similar performance package in a more manageable and easy to fly wing with incomparable safety and stability.
Situated above the LIFT range and under the F1, the F3 is the perfect upgrade for pilots looking to move up from their school wing. F3 offers real life cross country capabilities in a package that can supply both speed and high adrenaline fun with its agility and responsiveness. F3 will be equally enjoyed by advanced pilots, who do not need the cutting edge performance and speed offered by the F1 and enjoy more relaxed cruising around and slower take-off and landings.
The F3 is a very light wing! This contributes to its high level of safety and incredible ease of inflation, especially in nil wind take-offs. The reduced amount of inertia, further improves the passive safety, delivering a safe, solid, no compromise design. The weight saving is smartly achieved using lightweight materials on all internal parts and bottom surface, but retaining APCO’s legendary long-lasting fabric on the top surface, insuring the longevity expected from APCO.

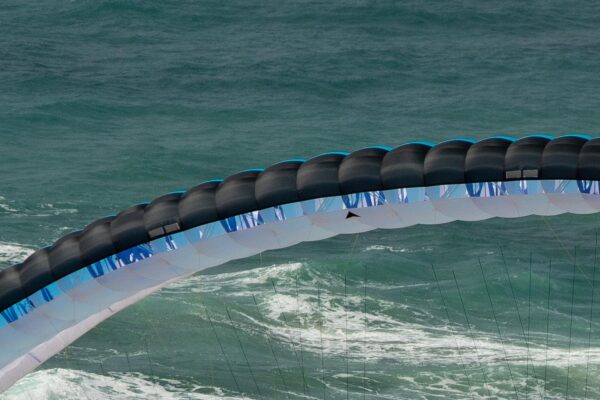

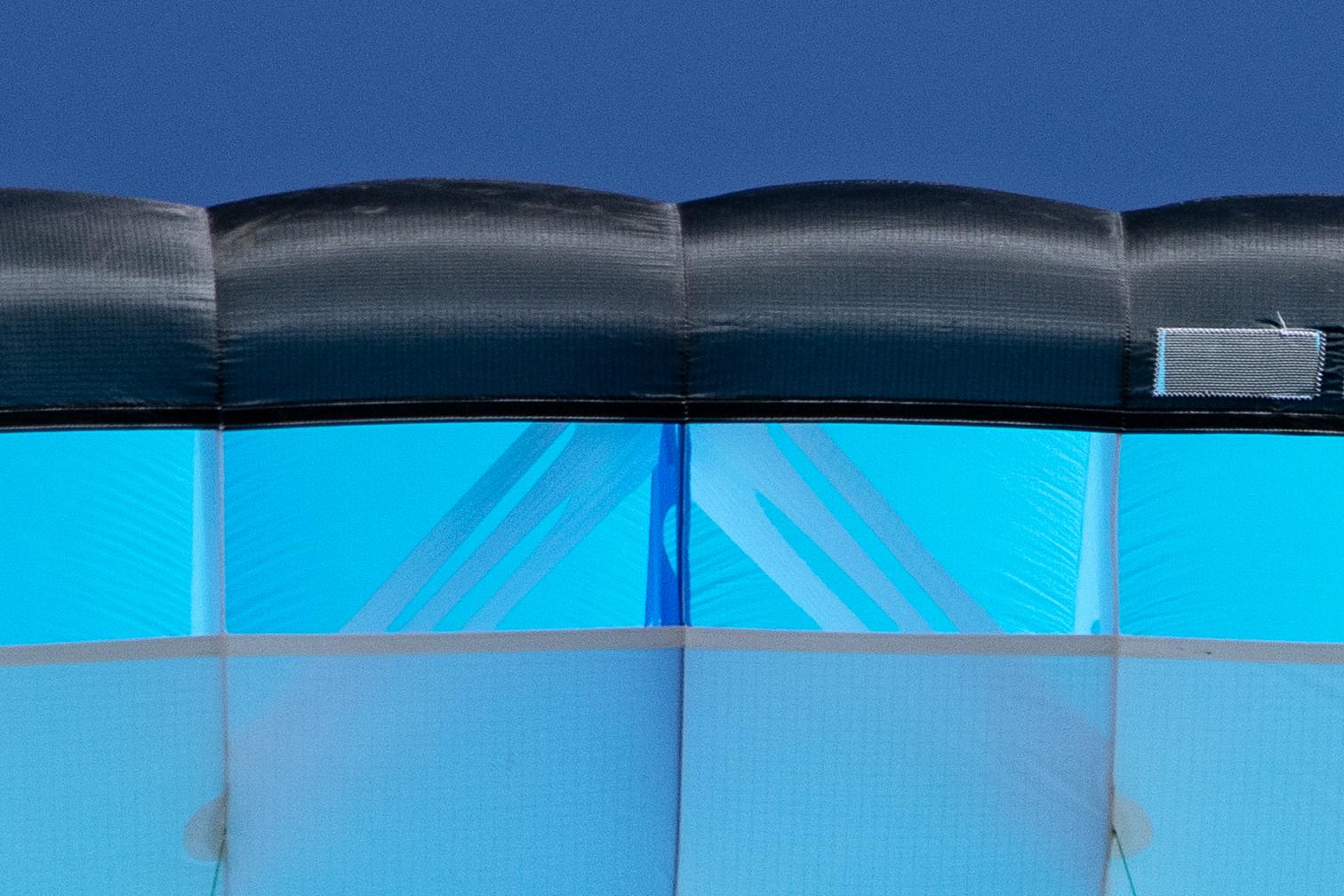

As with the F1, incorporated into the F3 is our Flow Aligned Ribs (FAR) feature, morphing direction from center to tip, it aligns the ribs with the natural direction of the flow, increasing both performance and stability throughout the speed range. The roll stability of the F1 is especially impressive, allowing for agile, precise handling. The canopy incorporates 2 functional “3D cuts” for the best possible leading edge shape definition. F3 sail tension has been optimized to be a homogeneous unit, solid and reassuring in flight.

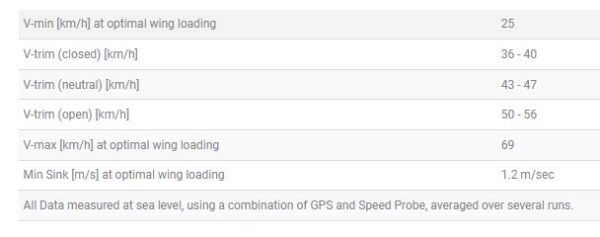

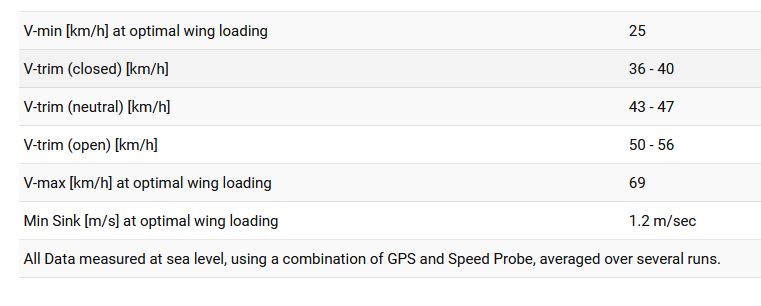

The riser / speed system / trim system was re-designed to incorporate all of Apco’s groundbreaking technologies, and has a greater usable range than any wing we have built before. The extensive speed range means you can launch and land at reasonable speeds, but can accelerate (speeds of up to 69 [km/hour]) with comfort during competition, or on the perfect long distance XC flight you’ve been dreaming about. With the trimmers closed, the F3 will thermal well, and has exceptional glide ratio (for a full reflex profile wing), so if you like to mix it up on a good day, idle or cut the motor and crank it up to cloud base with ease.
Open the trimmers and enjoy a significant speed increase of approx. 10 [km/h] (without the use of the speed bar).
Choose the speed bar and the OAA system will allow you to accelerate to the maximum in one swift motion!
Construction
APCO is traditionally known for using materials and building techniques which offer double and triple lifespan over the expected. The glider is made from tear resistant Ripstop Nylon cloth, which is P.U. coated to zero porosity and then siliconized to give the fabric high resistance to the elements. Different cloth is used for the top, bottom and ribs due to their different functions.
As on all APCO wings, the F3 wing uses the same long lasting cloth on top surface, guaranteeing its integrity for entire expanded lifespan of the wing. Nevertheless we significantly reduced the weight of the wing thanks to advanced solutions applied, without compromising on any of APCO’s legendary durability.
The top surface utilizes our double siliconized cloth – top front is critical area in terms of porosity as this is where most of the lift is generated. The bottom surface has been upgraded to a lightweight 27 gr. material with an advanced ripstop arrangement which saves additional weight. The ribs are separated into supported and unsupported ribs, with lightweight material on unsupported ribs for additional weight saving.

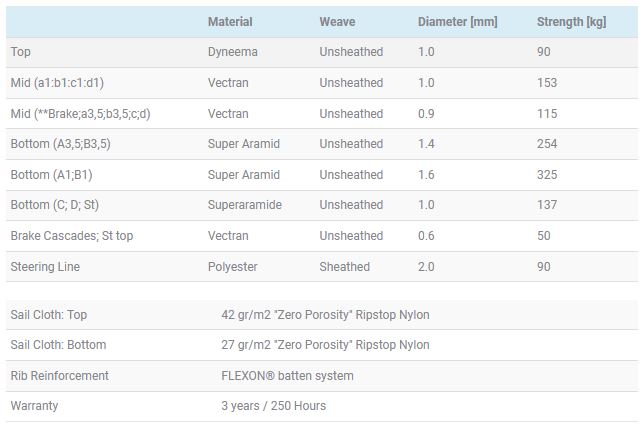

The lines are a mix of different materials in different positions, to optimize to the fullest the diameter/strength according to the required load. The top lines are our life-time warranted embedded hook in points made from Dyneema fiber. The rest of the lines are sheathed for extra durability and ease of use. Material used is Kevlar for its stability and resistance to elastic changes in length.
The bottom section of the brake lines is made of Dyneema because of its better mechanical properties. The Karabiners that attach the lines to the risers are made of stainless steel.
Documentation
Resources and Downloads:
Apco F3 Users Manual
Apco F3 22 Line Layout
Apco F3 24 Line Layout
Apco F3 26 Line Layout
