The new bigger EOS 150 engine is based on the concept and development of the smaller EOS 100 Booster ICI and features with:
- Lightweight & compact construction
In comparison to the competition in the same or similar class of displacement the engine is very light, built small, nicely and compact with the use of only highest quality materials. Well manufactured in all details by the use of most modern techniques with a smart constellation of components which are perfectly working together.
- Optimum operation
The engine is easy to start up, with a smooth and constant run at idle. The carburetor with adjustable L and H jets together with the unique HIFLOW-SHOT air box care for an even run in all revolutions and can be customized for different locations of operation. Perfectly balanced crankshaft, fly wheel and shafts care for a low vibration. The fan cooling prevents the engine against overheating and allows long duration runs at full power.
- Power & thrust
Despite the small size and comparable low weight, the moderate compression ratio for a durable and long life span, the engine creates an optimum thrust and a lot of power.
- Reliable quality
The well proven engine concept and the use of highest quality materials and components, the best workmanship and accurate engine assembly, all grant for a highest quality product and reliable engine run throughout a long period of operation.
- Equipped with the ICI ignition system such as the EOS 100 Booster ICI.
EOS 150 – compact design, lightweight & reliable high power!
|engine||one cylinder 2 stroke|
|gear ratio of belt drive||1:3,5|
|carburetor||Membran Walbro WB 37|
|spark plug||NGK BR9HS, B9HS, BR10HS, B10HS|
|power||25,7PS (18,9KW) at 9000U/min.|
|thrust||>66kg / >70kg 125cm / 130cm prop|
|starter||rope hand starter / EASY-STARTER|
|average consumption||3,3 – 4l/h|
|fuel inlet||Membran, Fiber Reed Valve|
|air inlet||HIFLOW-SHOT Air Box|
|fuel recommendation||unleaded 98 Octane|
|2-stroke oil||full synthetic|
(with exhaust – all complete)

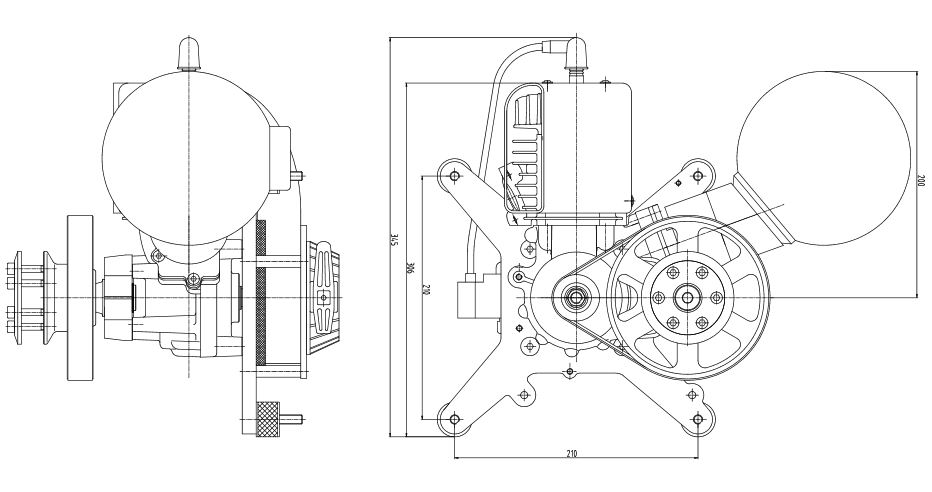

|max. build-in length||21cm|
(rotation anti clockwise)
diameters 125cm or 130cm
|EOS P&T Carbon 2-blade|
